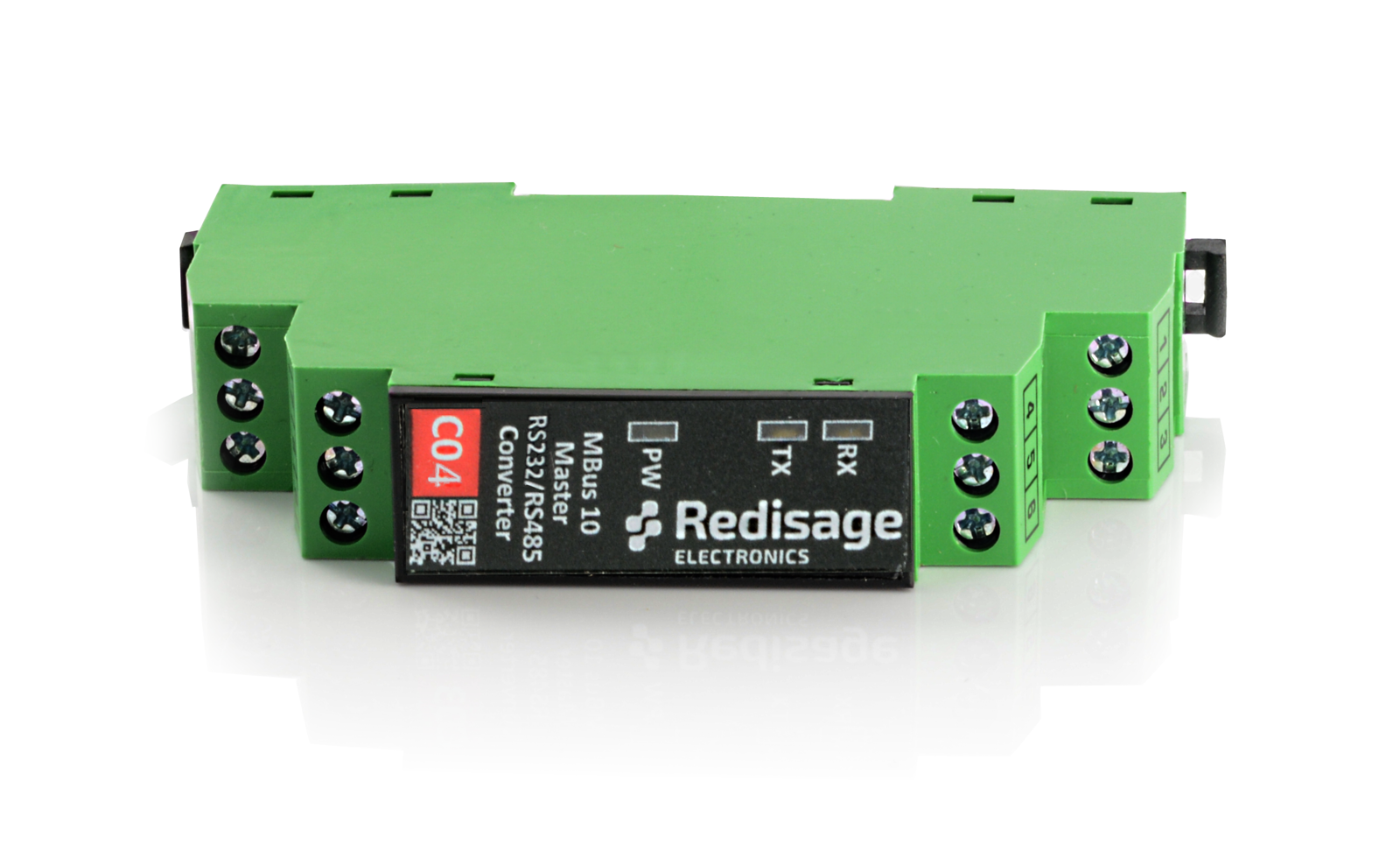

RS232-RS485 Adapter (SmartDog 4.0)

Artikelnummer : [460536]

Funktion

• Mit unseren RS232-auf-RS485-Adaptern können Sie den Bus 10 (RS232) zu einem fünften RS485-Bus erweitern

EZA-Regler RS232-RS485 Adapter V4 [460536]

Features:

• Isolation: RS232 Side (Separates PC/PLC from the rest)
• Interface: RS232 (Screw terminal) to RS485
• Speed: Transparent up to 115200 bps
• Control: Hardware ADDC (No RTS control needed)
• Power Supply: 12-30 VDC or 24 VAC
• Isolation 3000 VDC on the RS-485 side
• RS485 embedded termination 120 ohm
• DIN-rail mounting
• Operating temperatures: -40°C to +75°C

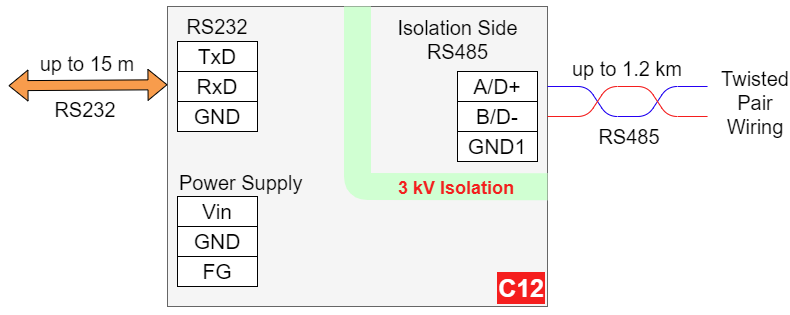

Anschluss
